Temperature Test Chamber

For Temperature Simulations

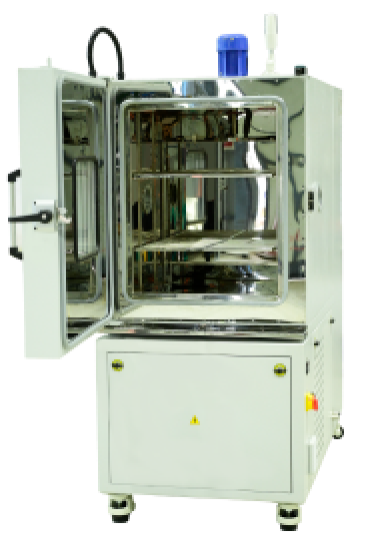

Temperature_chamber650

Temperature Test Chamber

Klima range of Temperature Chambers simulation. With the new design, an upgraded refrigeration system & intelligent controller, Klima is now more efficient than ever and provides uninterrupted testing experience.

Optimised heating & cooling system offers higher performance & energy efficiency.  The test chamber can be customised suiting to different test standards. It comes with larger viewing window, ports for live specimen testing, visual alarm system, improved mobility and smaller footprint.

  • Temperature Range: -70ËšC to +180ËšC (Cascade) & -40ËšC to +180ËšC (Single)
  • Slide-Out, Adjustable Product Shelf
  • A Lockable, One-Handed Door Latch
  • Two 4″ (100mm) Circular Port Plugs
  • TCP/IP and Serial Communication
  • Frost-Free Operation
  • Non-settling oven-grade rigid stone wool insulation, 0.25 K factor
  • Heavy-Duty Casters Swivel provides portability and is equipped with leveling pads for added stability.
  • Energy Saving and Low-GWP Refrigerant R404A and R23
  • Silicone two-piece door gasket, featuring mitered and vulcanized corners for a secure and durable seal.
  • A multi-pane fog-free, tempered heated viewing window minimizes condensation with interior light.
  • The interior liner is constructed with continuous TIG welding using 304 stainless steel, ensuring durability and quality.
  • Maintenance is made simple with full three-sided access to the base-mounted system components, facilitating ease of service and upkeep.

Features

Below are some of the frequently used test standards in Klima temperature only chamber.

IEC 60068 - 2 - 78, 2012, Environmental testing Part 2-78:, Tests: Damp heat, steady state
IEC 60068 - 2 - 1, 2007, Environmental testing Part 2-1:, Tests: Cold
IEC 60068 - 2 - 2, 2007, Environmental testing Part 2-2:, Tests: Dry heat
IEC 60068 - 2 - 14, 2009, Environmental testing Part 2-14: Tests: Change of temperature
IS 9000 Part II Sec. 1 to 4, 1977 & Sec. 1 to 5, 1977, Basic climatic test procedures, Part 2:Cold test, Part 3: Dry heat test

Technical Specifications



 Specification/ Model KLIMA – 120/-40T/3K KLIMA -120/-70T/3K KLIMA – 225/-40T/3K KLIMA -225/-70T/3K KLIMA – 340/-40T/3K KLIMA -340/-70T/3K KLIMA – 450/-40T/3K KLIMA -450/-70T/3K KLIMA -600/-40T/3K KLIMA -600/-70T/3K KLIMA – 1000/-40C/3K KLIMA -1000/-70C/3K KLIMA – 1500/-40C/3K KLIMA -1500/-70C/3K
TEST SPACE DIMENSIONS
Test space volume Ltr. 120L 225L 340L 448L 612L 1000L 1500L
Width mm 500 600 700 700 800 1000 1000
Depth mm 400 500 600 800 850 1000 1500
Height mm 600 750 800 800 900 1000 1000
PERFORMANCE DATA FOR TEMPERATURE TESTS
Maximum temperature °C 180
Minimum temperature discontinuous °C -40 -70 -40 -70 -40 -70 -40 -70 -40 -70 -40 -70 -40 -70
Rate of temperature change, cooling  °C/min 3
Rate of temperature change, heating °C/min 3.5
Temperature deviation, in time °C ±0,5 … ±1 ±0,5 … ±1 ±0,5 … ±1 ±0,5 … ±1 ±0,5 … ±1 ±0,5 … ±1 ±0,5 … ±1
Heat compensation, max. at +20 °C W 850 1000 850 1000 900 1100 900 1100 1000 1200 1000 1200 1000 1200
Test Standard Compliance IEC-60068, IEC-60749, IEC-61747, MIL-STD, ISO16750, ASTM, SAE, BIS & 50 other standards
TEST SPACE LOADING CAPACITY
Load, max. kg 80 100 100 100 100 100 100
Load per grid kg 20 20 25 25 30 30 30
Possible number of insert grids piece 4 5 6 6 7 7 7
POWER/CONNECTION DATA
Voltage rating V 3/N/PE AC 415V±10% 50Hz other voltages and frequencies optional
Connected Load kW 7.5 10 8.5 11 9 12 10.5 13 13.5 16 15 18.5 16 19
Sound pressure level dB(A) 72 74 72 74 72 74 73 74 73 74 73 74 73 74
Total weight kg 450 500 490 540 540 600 600 680 720 780 820 900 900 1000
Refrigerant System type R404A R404A R404A R404A R404A R404A R404A R404A R404A R404A R404A R404A R404A R404A
R23 R23 R23 R23 R23 R23 R23
(*) The performance data refer to an operating room (ambient) temperature of +26 °C , 415 V/50 Hz nominal voltage, without test specimen and without accessories

Options

(Special accessories on customer request)

Additional Port Holes 50MM, 100MM, 125MM& 150MM
Floor Loading Capacity (Customizable)
Air Dryer for Low RH Applications
Heavy duty Customized Shelves
Water-Cooled Refrigeration Systems
Remote Refrigeration/ Condensing Unit
Booster Cooling through LN2 up to -150 Deg C

Touchscreen Controller

HIACC’s flagship touchscreen controller provides ease of doing complex testing. It is equipped with USB access & ethernet with a range of flexibility. Following are some of the features of the controller.

HomeScreenProgram_updated
Chamber Home
ChamberMenu_updated
Chamber Menu
MIMIC_update
Process Mimic
Diagnostics_update
Chamber Diagnostics
Alarem_update
Alram Status
